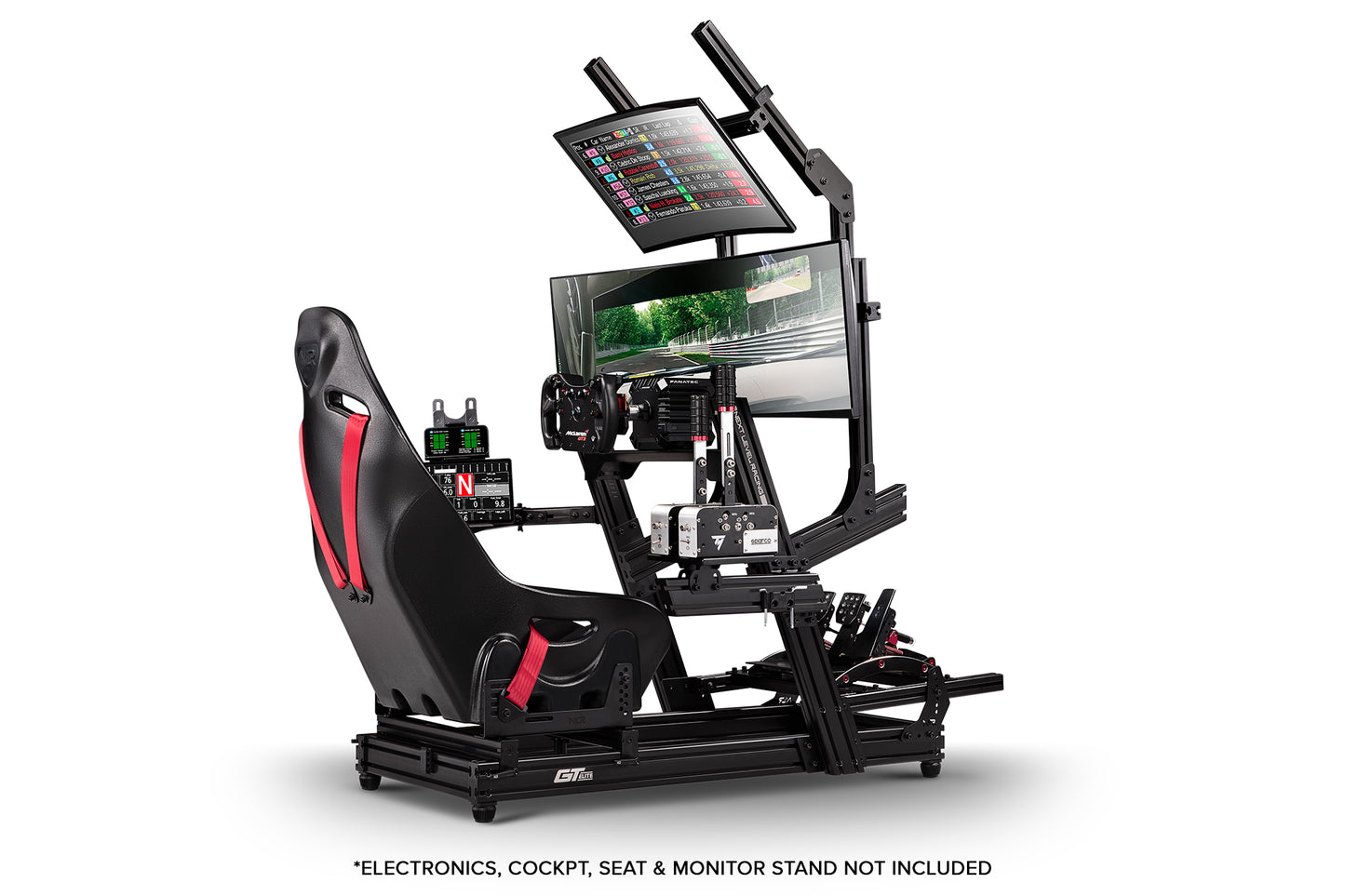

The Next Level Racing® Elite Button Box and Tablet mount is the perfect plug and play solution to mount physical or digital (tablet or phone) buttons and switches or displays. With a wide range of mounting options, sim racers are able to customize their Elite simulator dashboard exactly how they want it.

LEADING FEATURES

1. Compatible with the Next Level Racing® Elite series Cockpits
2. Wide range of tilt and angle adjustment for fine tunning
3. Compatible with Mobile Phones, Tablets, and Button Boxes
4. Tablet Mount Bracket supporting heights from 120mm - 225mm
5. Button Box Bracket supporting heights from 35mm - 155mm

WIDE RANGE OF ADJUSTIBILITY

The Elite Tablet / Button Box Add-on is designed and engineered to give you the ability to mount your Tablet or Button Box in the perfect position. With a double joined configuration, the user is able to have full adjustability in distance and placement of their button box.

The Elite Tablet/ Button Box Add-on also offers three lateral axes of rotation for ease of movement and for fine adjustment in distance and angle. The ability for the vertical axis of rotation, allows the user to angle their button box or tablet in the optimal positioning and a driver-centric dashboard/centre console.

The mount clamps offer a 105 degree of range (90 degrees Upwards tilt and 15 degrees downward tilt). The Mount Arms adjustment is 160 degrees (80 Degrees Clockwise and 80 Degrees Counter Clockwise). For the Wheel Plate mounting variation, the angle adjustment offers 120 degrees (60 Degrees Clockwise and 60 Degrees Counter Clockwise), while the pivot angle adjustment range is 140 degrees (90 Degrees Upward tilt and 50 Degrees Downward tilt).

HIGH QUALITY AND COMPATIBILITY

The Elite Tablet/ Button Box Add-on is constructed from a premium aluminium profile with a custom premium black anodised finish, combined with precision folded black carbon steel for added strength. With the 3-mounting variations, the Elite Tablet/ Button Box Add-on is able to be mounted to any existing Elite series cockpit and other aluminium cockpits, based on user preference and the most realistic positioning.

WHAT’S IN THE BOX

• Tablet Clamp
• Button Box/Phone Clamp
• Wheel Plate Mount Bracket
• Premium Alunimium Excursion
• Assembly Hardware
• Articulating Pivot Joints
• Cable Management Clips
• Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions

SPECIFICATIONS

• Boxed Dimensions: 55.5 cm (L) X 33.5 cm (W) X 14.1 cm (H) 21.9 inches (L) x 13.2 inches (W) x 5.6 inches (H)
• Product Dimensions:
• Measurement covering maximum range for Single Arm- 38.5cm x 15cm x 43cm or 15.2inches x 5.9inches x 16.9inches
• Measurement covering maximum range for Double Arm- 63cm x 15cm x 43 cm or 24.8inches x 5.9inches x 16.9inches
• Measurement covering maximum range for Wheel Deck – (H) 52cm x (W) 15cm x (D) 12cm or 20.5inches x 5.9inches x 4.7inches

• Boxed Weight: 4.5 kg or 9.9 lbs
• Part Number: NLR-E020

COMPATIBLE NLR PRODUCTS

• Next Level Racing Elite Aluminum F-GT Cockpit - Bottom Plate Edition
• Next Level Racing Elite Aluminum F-GT Cockpit - iRacing Edition
• Next Level Racing Elite Aluminum F-GT Cockpit - Front/Side Bracket Edition
• Next Level Racing GT Elite Cockpit - Wheel Bracket Edition

• Next Level Racing GT Elite Cockpit - Wheel Plate Edition
